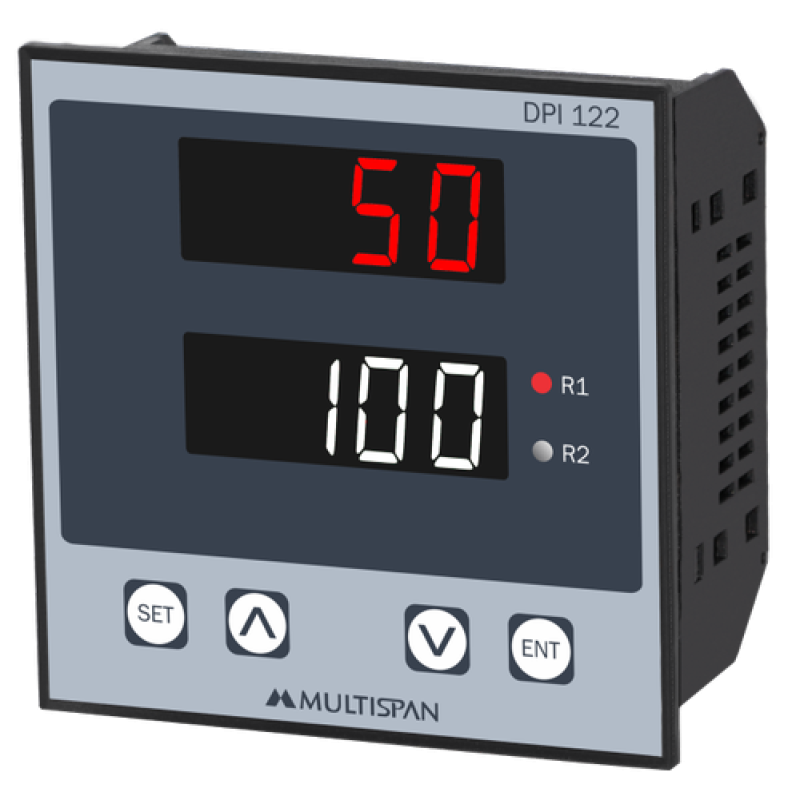

Dual Process Indicator
Product Details :
Model Name/Number | DPI-122 |
Brand | Multispan |
Country of Origin | Made in India |
MODEL | DPI-122 |
Dimension (HxWxD) mm | 96 x 96 x 52 |
Panel Cutout (HxW) (mm) | 92 x 92 |
Input | PT-100 3Wire / 4-20mA DC / 0-20mA DC / 0-10V DC (Any two factory set) |
Range | -999 to 9999 For Analog I/P, PT-100 (0.0°C - 400.0°C) |
Output | 1 Relay / 2 Relay (Optional) 24V DC Transmitter Supply@30mA (Optional) RS-485 Modbus (Optional) |
Power Supply | 100-270V AC (SMPS), 50/60 Hz |
