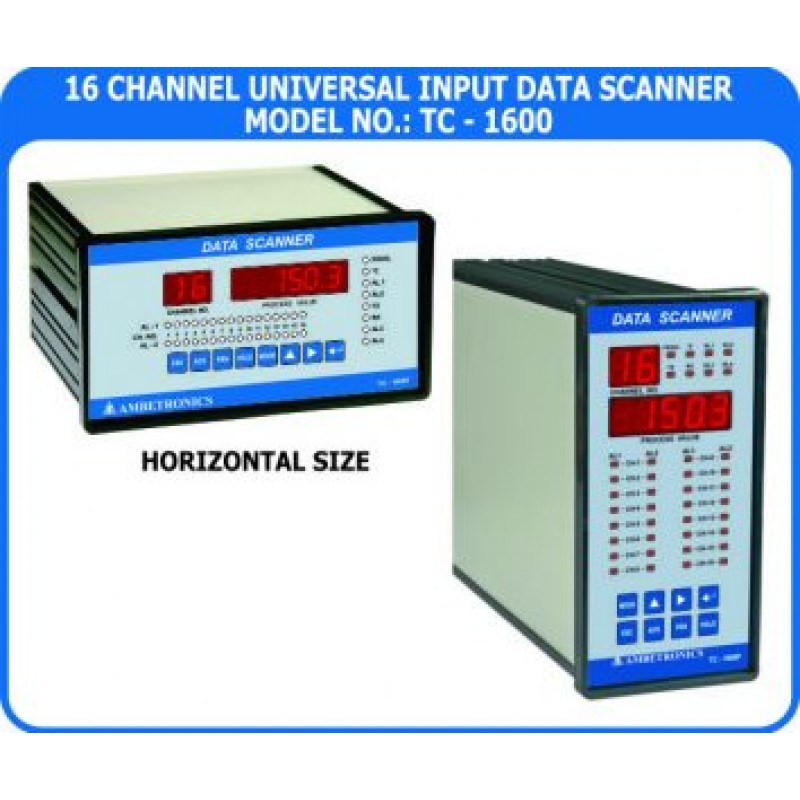

Fixed Input 16Ch.Data Logger/ Scanners TC-1600-F/FD-series
Description:

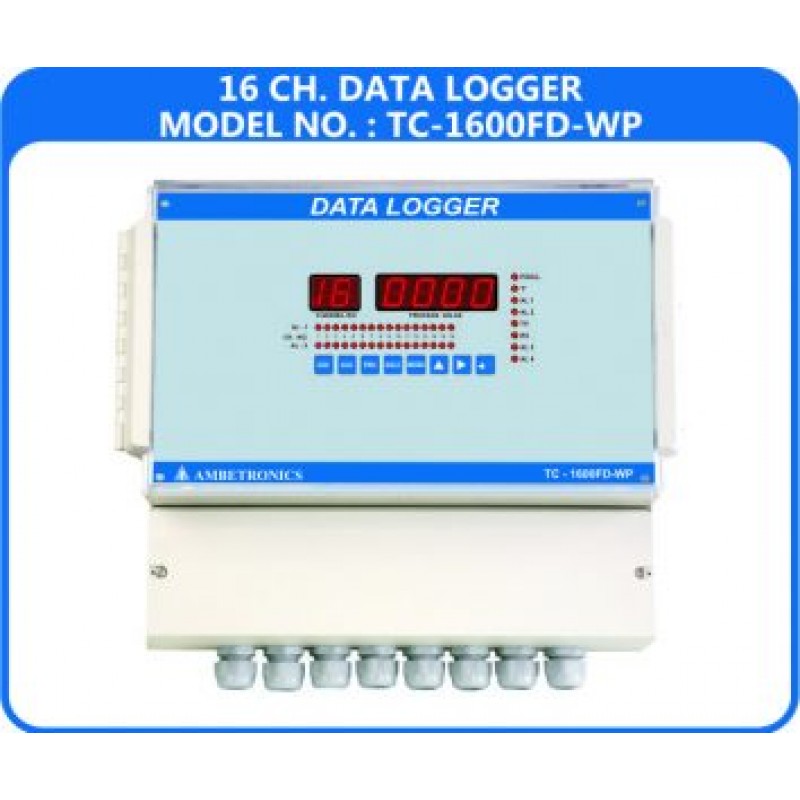

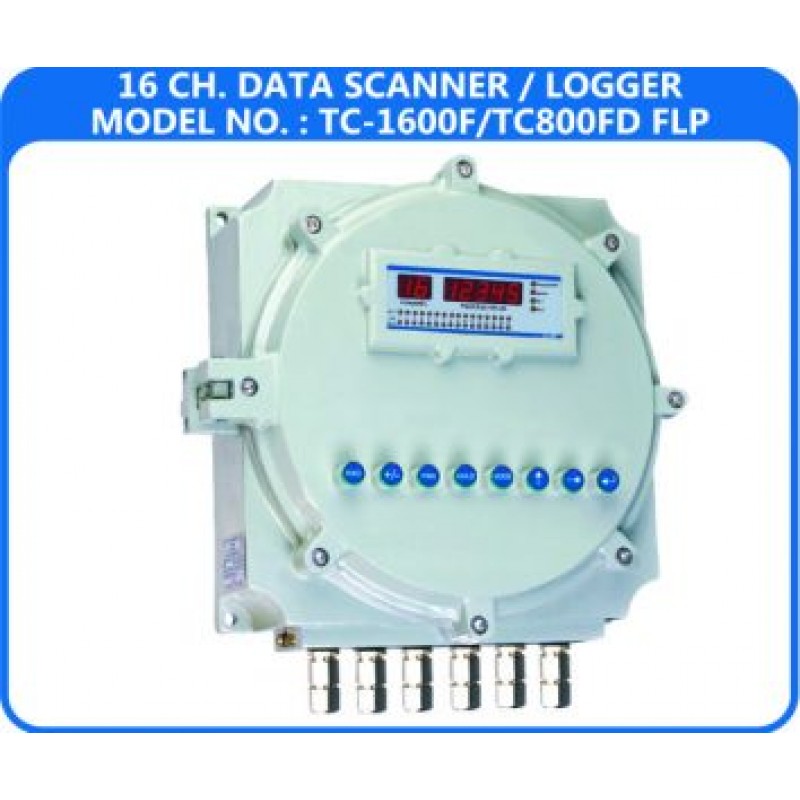

TC-1600-F/FD-series is a 16 Channel fixed input type data logger / data scanner which is available in weatherproof, flameproof or panel mounting type enclosures as per the requirement at Client site.
Salient features:-
- These Data Logger Use latest micro controller based technology for better accuracy.
- 16 Channel fixed input for all thermocouple, J, K, R, S, T, E, B, N programmable by users, and Fixed Inputs for RTD (PT-100 / CU53), 4-20 mA, 0-10VDC factory settable.
- Easy on-line field calibration by front panel membrane keypad
- Field programmable channel scan time 1 to 59 sec., Logging interval 1 to 9999 sec & Printing Interval 5 to 9999 sec.
- Field programmable Delay time 1 to 99 sec. for Relay Output
- Optional RS-232 / RS-485 Modbus Serial Port
- Optional Parallel / USB Printing Port.
Applications :
- ISO Certification records, Validation process certifying
- Pharmaceutical process validation with graph & excel report in Autoclaves
- Online profile recording for Oven & BOD, Incubator, Humidity Chamber
- Winding temperature of generators, Bearings, motors, transformers
- To know heat Profile in furnace, foundries for Heat treatment application
- Primary & auxiliary temperature scanning of boiler
- Chemical & Hazardous area where data monitoring is essential
- Room Mapping in Pharmaceutical
