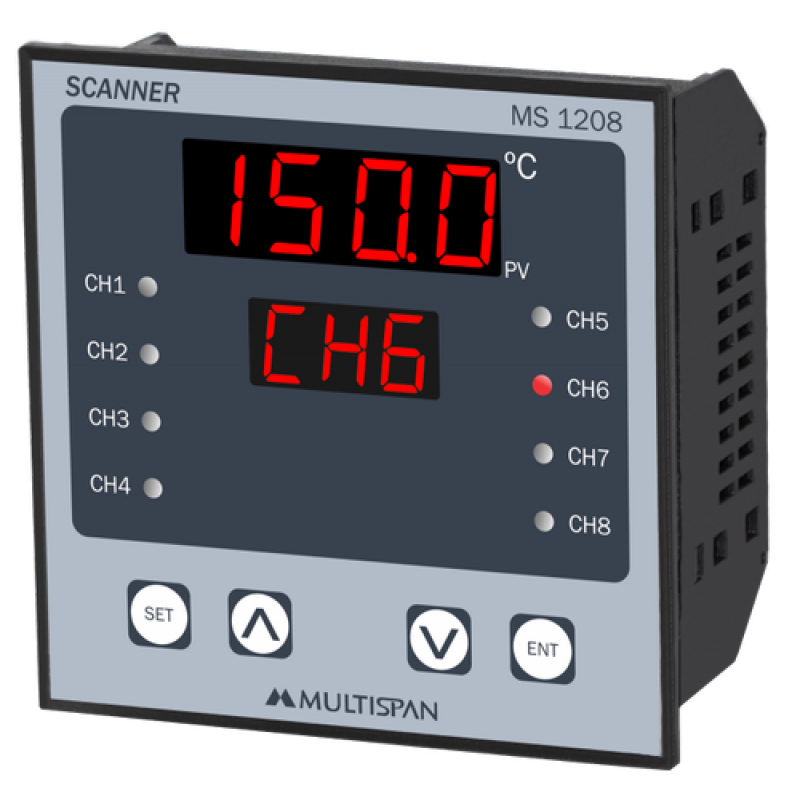

MODEL

MS-1208

MS-1208A

Dimension (HxWxD) mm

96 X 96 X 52

96 X 96 X 52

Panel Cutout (HxW) (mm)

92 X 92

92 X 92

Input

J / K / PT-100

(2W / 3W)

0-10V DC / 4-20mA DC    / 0-20mA DC

Range

J(0°C to 400°C),

K(0°C to 1200°C),

PT-100(-99°C to 400°C & -99.9°C to 400.0°C)

-999 to 9999

Output

RS 485 Modbus communication (Optional)

Resolution

J & K = 1°C Fix,

PT-100 = 1°C/0.1°C

Decimal Point selectable:

000.0/00.00/0.000/0000

Accuracy

±1% of FSD

Power Supply

100 to 270V AC,50-60Hz
