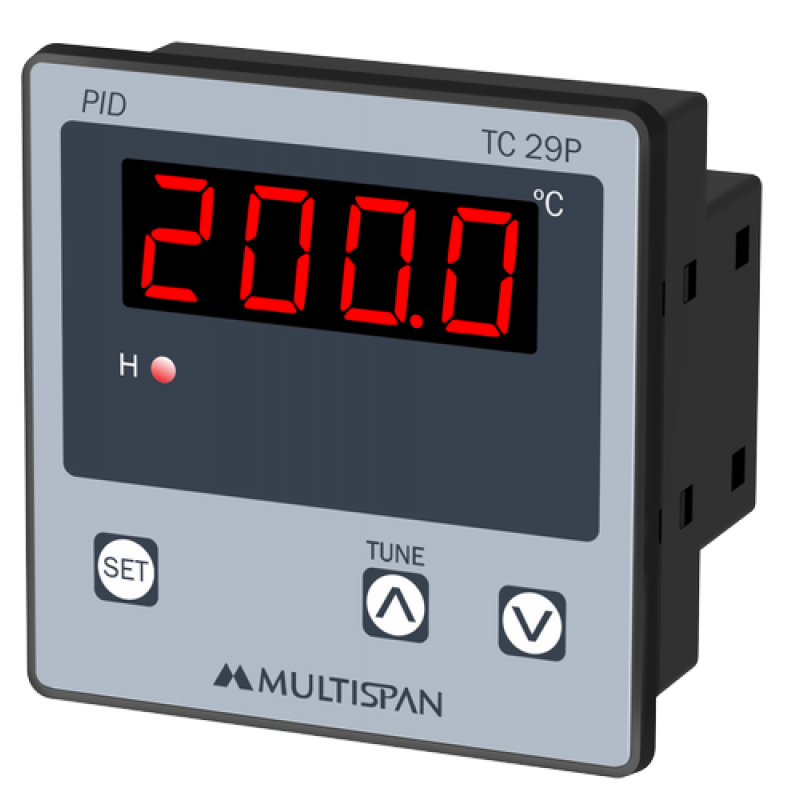

MODEL

TC-19

TC-29

TC-49

Dimension (HxWxD) mm

96 X 96 X 50

72 X 72 X 60

48 X 48 X 70

Panel Cutout (mm)

92 X 92

68 X 68

44 X 44

Display

Single display: 7 segment, 4 digit,0.56", RED LED display.

Single display : 7 segment, 3 digit, 0.56", RED LED display.

Sensor

J / K / R / S / PT-100 2W/3W (Factory Set )

J/K (Configurable)AND PT-100 2W/3W ( Factory set)

NTC (THERMISTER)

Range

J(0°C to 400°C & 0°C to 600°C), K(0°C to 1200°C), PT-100 2W/3W((0°C to 400°C, - 50.0°C to 200.0°C)

J(0°C to 400°C & 0°C to 600°C), K(0°C to 999°C), PT-100 2W/3W (0°C to 400°C, - 50°C to 400°C)

NTC (- 40°C to 90°C )

Relay Ratings

1C/O, 5A, 230V AC

Set point

1 - Set Point (Push button to set SET point )

1 - Set Point (Push button to set SET point)

Control Action

Time Proportional / ON-OFF (Factory Set)

Time Proportional / ON-OFF (Configurable)

ON-OFF

Operating Mode

HEAT Mode

HEAT Mode

COOL Mode

Resolution

J & K 1°C Fix, PT 100 2W/3W 0.1°C/1°C

J & K & PT-100 2W/3W 1°C fix

1°C

Accuracy

±1% of FSD

Power Supply

230V AC, ±10%, 50Hz

90 - 270V AC/DC, 50/60 Hz, SMPS

230V AC, ±10%, 50Hz

Protection

Relay turns OFF in case of sensor break

Indication

"Open" message is displayed if sensor is disconnected,& LED for Relay Status Indication

Enclosure Material

Plastic

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
