Product Coolers
Product Details :

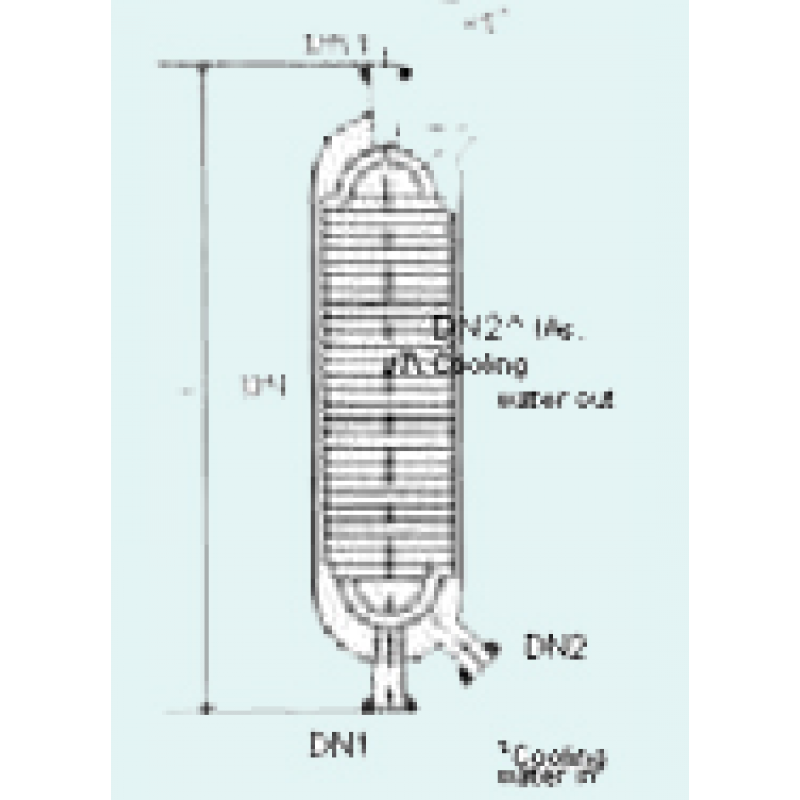

HEF product coolers are general purpose coolers used, typically, for the cooling of products from distillation columns. The coolers are connected directly to the product outlet of the column by means of DN1. The product then flows from the top to the bottom of the unit through the coil battery across which the cooling water flows counter currently from bottom to top. For connection of the cooling water inlet and outlets, we recommend the use of angled hose connections.
Catalogue reference | HEF 25/0.3 | HEF 25/0.5 | HEF 25/1 | |
Heat transfer area | m2 | 0.3 | 0.5 | 1.0 |
DN | mm | 100 | 150 | 150 |
DN1 | mm | 25 | 25 | 25 |
DN2 | mm | 25 | 25 | 25 |
L | mm | 550 | 550 | 750 |
