MODEL

Dimension (HxWxD) mm Panel Cutout (mm)

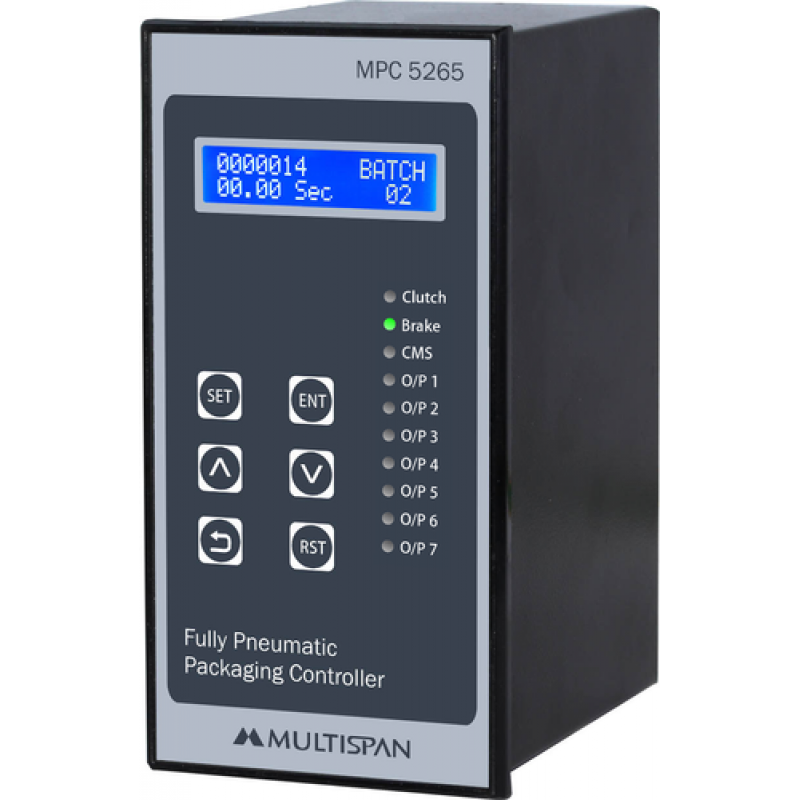

MPC-5265

96 x 192 x 100

92 x 188

Display

16 Character by 2 - Line LCD display

INPUT

Input Signal

10 Input NPN / PNP Proximity Switch

OUTPUT

Output 1 Output 2 Relay Ratings

Clutch & Break, 24 V DC 8 - Relay Output 1C/O, 5A, 230V AC

SPECIFICATION

Set point Setting

Count direction Reset Facility Memory Retention

8 - Set Points (Configurable) 4 - Front Keypad

Up

By Front Keypad Non-Volatile Memort

Power Supply Indication

230 V AC, 50 Hz (linear power supply) LED for indicating: Clutch, Break & 8 - Relay

Enclosure Material

Metal

NOTE:

Instrument Operation can be customized as per Machine Application
