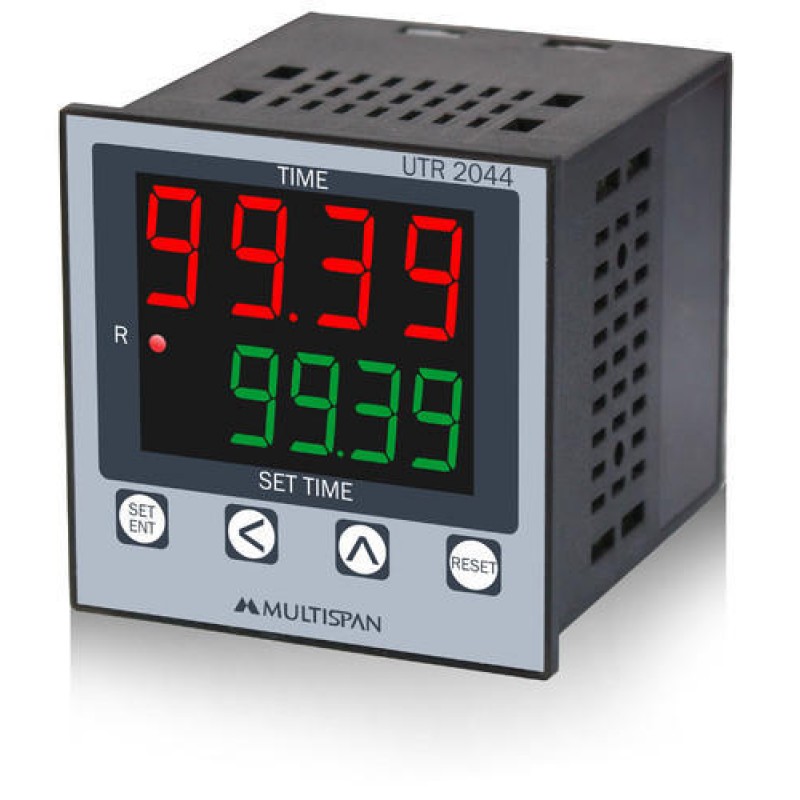

Programmable Timer Universal Range
Product Details :
MODEL | UTR-1044 | UTR-2044 | UTR-444 | UTR-413 |
Dimension (HxWxD) mm | 96 X 96 X 50 | 72 X 72 X 85 | 48 X 48 X 95 | 48 X 48 X 95 |
Panel Cutout (mm) | 92 X 92 | 68 X 68 | 44X 44 | 44X 44 |
Display | Upper : 7 segment, 4 digit, 0.56" RED LED - Time Lower : 7 segment, 4 digit, 0.4" GREEN LED - Set Time | Upper : 7 segment, 4 digit, 0.4" RED LED - Time Lower : 7 segment, 4 digit, 0.3" GREEN LED - Set Time | Single : 7 segment, 3 digit, 0.56" RED LED | |
Start Pulse | Micro switch / Limit switch / Proximity | Micro switch / Limit switch | ||
Start PulseType | Power ON/Enable/Trigger |
| ||
Control Output | 1 - Relay | |||
Relay Ratings | 2 C/O, 5A, 230V AC | |||
SSR / Buzzer | 12V DC approximately (Optional) | |||
Set point | 1 - Set Point - (Delayed ON / Instant ON) ( Configurable),2 - Set Point - (Cycle Mode) | 1 - Set Point | ||
Operating Mode | Delayed ON / Instant ON / Cycle Mode( Configurable ) | |||
Reset Facility | Front & Back Both Reset Available | |||
Time Setting Range | 99.99/999.9/9999 sec(configurable) | 9.99/99.9/999 sec | ||
99.59 min/sec,999.9 min,9999min(configurable),999.9hrs,9999 for hours,99.59 hrs/min(configurable) | 9.59 min/sec,99.9min,999min,99.9 hrs,999 for hrs,9.59 hrs/min | |||
Counting direction | Up/Down(configurable) | |||
Memory retention | Yes/No(configurable) | |||
Parameter lock | ON/OFF(Configurable) | |||
Power supply | 100-50V AC/DC,50/60Hz |
