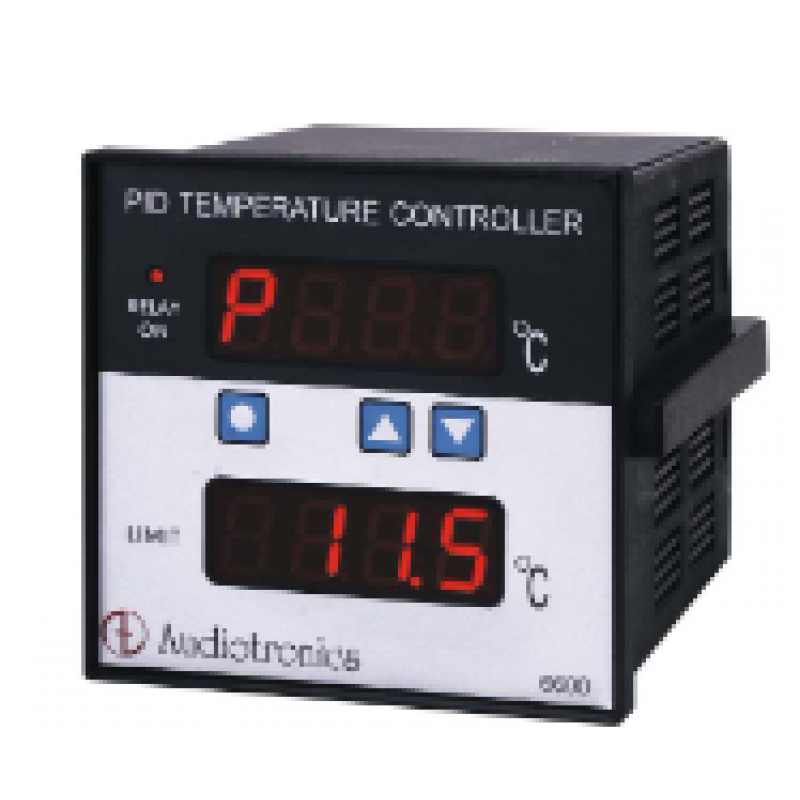

PID Controller
Product Details:
- Microprocessor based controller, linearised for PT100 sensor & 3 thermocouples (J,K,R) with Auto cold junction compensation
- Auto/Manual tuning selectable
- PID/On-Off control user selectable
- Separate displays for Temperature and Set Point
- Output selectable as Heater/Cooler logic in On/off mode
- Relay/SSR output selectable
- Offset digitally programmable from front
- Configuration lockable by rear jumper
- User programmable hysterisis band in On/Off mode
- Non-volatile memory to save settings
- Aesthetically designed panel with membrane switches
Display | 4 digit 0.56” 7 segment Red LED display for |
Sensor | J,K,R or 3 wire PT100 |
Range | J T/C : 0 to 750˚C K T/C : 0 to 1250˚C |
Accuracy | ±0.1% of Full Scale ± 1 digit |
Relay Logic | In On/Off mode (P=0), Relay programmable |
Proportional Band (P) | Settable from 0-200.0 |
Integral Time (I) | Settable from 0-3000secs |
Derivative Time (D) | Settable from 0-3000secs |
Hysterisis Band | Settable from 0˚C to 20.0˚C |
Offset Band | Settable from -20.0˚C to +20.0˚C |
Memory | Non-volatile EEPROM to save settings |
Configuration Lock | Open terminals 4&5 to lock the Sensor |
Supply | 220V AC ± 15% @ 50/60Hz |
Dimensions | 96mm x 96mm x 135mm. |
Weight | 800 grams |
