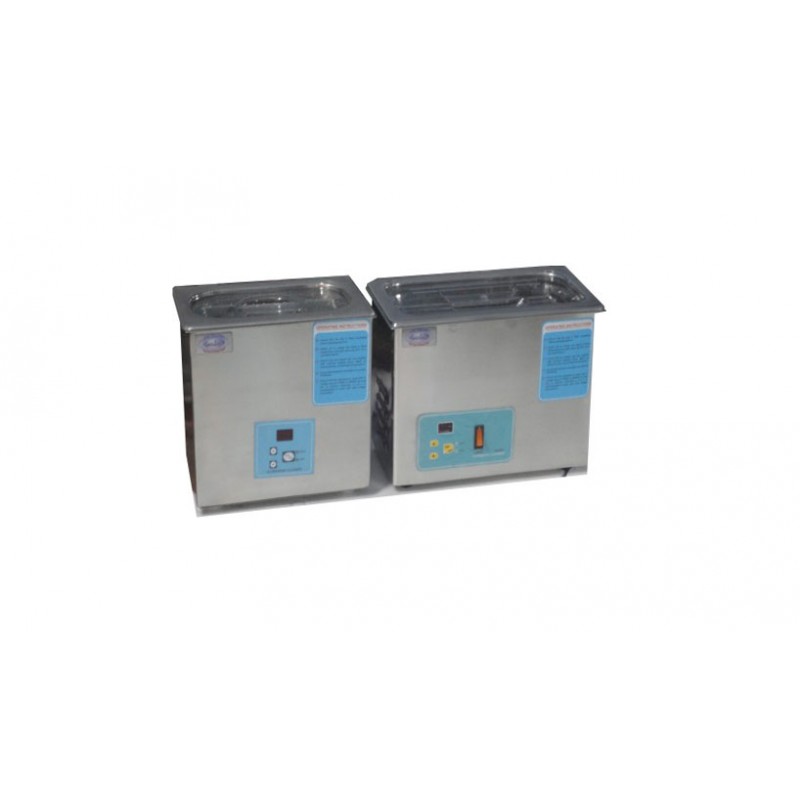

Ultrasonic Cleaner Sonicator
The ultrasonic energy is produced by converting electrical energy into mechanical vibrations by using generator and piezo electric transducer. Due to mechanical vibrations in cleaning liquid this Phenomenon is called cavitation. In a very short time it removes all dirt & foreign bodies from components which are immersed in the cleaning liquid.
Salient Features
- Low noise Ultrasonic machines
- High temp with a temp range upto 60°C for continuous process.
- Digital temp controller.
- Low cost and optimized machine for specialized requirements.
- Uniform cavitation through out the tank
- 33 KHz frequency for effective cleaning
Model | SAII-US-1 | SAII-US-2 | SAII-US-3 | SAII-US-4 | SAII-US-6 | ||
Tank volume (Litres) | 1 L | 2 L | 3 L | 4 L | 6 L | ||
Ultrasonic wattage | 50 | 100 | 150 | ||||
Ultrasonic frequency | 33 ± 3 KHz | ||||||
Dimension(LxWxHmm) | 176x162x65 | 150x135x100 | 150x135x150 | 235x135x150 | 300x155x150 | ||
Outer dimension | 190x180x200 | 175x165x200 | 175x165x250 | 265x165x290 | 325x175x290 | ||
Heating | N/A | Ambient to 60°C | |||||
Digital Timer | 5 to 60 mins | 1 to 99 mins | |||||
Inner tank material | Stainless Steel | ||||||
Power supply | 220 V AC | ||||||
Tank drain | N/A | Ball valve | |||||
Model | SAII-US-10 | SAII-US-16 | SAII-US-20 | SAII-US-25 | SAII-US-30 |
Tank volume (Litres) | 10 L | 16 L | 20 L | 25 L | 30 L |
Ultrasonic wattage | 200 | 300 | 300 | 500 | 600 |
Ultrasonic frequency | 33 ± 3 KHz | ||||
Dimension(LxWxHmm) | 300x240x150 | 330x300x200 | 400x300x200 | 500x300x200 | 400x 400×200 |
Outer dimension | 325x265x290 | 355x325x400 | 430x330x420 | 530x330x420 | 450x450x450 |
Heating | Ambient to 60°C | ||||
Digital Timer | 1 to 99 mins | ||||
Inner tank material | Stainless Steel | ||||
Power supply | 220 V AC | ||||
Tank drain |
| ||||
