Wireless Gas Detectors With Wireless Control Unit

Description Of Wireless Gas Detectors:

The WGD-Series Wireless Gas Detector is a complete stand-alone system with integrated battery. These WGD-series along with the Local Receiver Unit SIG2RCV, are one of the recent technologically upgraded products which work on GSM/GPRS systems and can easily interface with Oxygen, Methane, Combustible & Toxic gas sensors.

They eliminate the use of physical cables that were required for signal / data transfer between the conventional detectors & multi-channel monitors.

Highlighted Features of WGD-series device are: Battery and Solar powered, Cloud connectivity, Cloud based data storage, SMS and Email alert / notification.

These wireless data communication features integrated within these devices, use the constantly evolving technologies related to the Internet of Things – IoT category.

Basic Features & Applications Of Wireless Gas Detectors:

• 1+ year battery life (1 Transmission / Day)
• Internal Lithium battery or Solar powered option
• Suitable for use in remote & hazardous locations
• 2G GSM/GPRS Global Transmission
• Redundancy system with auto service provider or network switching in case of network failure
• Transmits Gas reading, Battery status & alert status to 2 wireless central units and 10 users
• Low, High configuration Alarms with SMS and Email alerts
• Wireless remote central unit which is also called as local receiver unit for relay operations and data collection over MODBUS
• User programmable sensor locations
• Continuous Gas Monitoring with no sleep mode
• Graphical LCD with backlight
• Display sensor reading, Alarm status and battery level
• Password protected Display function menu
• User friendly multifunctional keypad & GLCD display for easy Man-Machine interface
• Front LED indicators for: Device status, Alarm Status, Communication, Network Status.

Technical Specifications Of  WGD-Series:

USER INTERFACE:

• LCD display : 128 x 64 pixel Graphical display
• Keys: 3 Keys (SHIFT Key, SET Key, INCR Key)
• LEDs: 4 LED Indications (Health LED, Alert LED, Communication LED, Network LED)

SENSOR:

• Sensor Technology : NDIR technology – Sensor Life – 8 Years
• Response time : < 30 Secs;

Range & Resolution:

• Gas: Methane (CH4 ); Range: 100 % LEL; Resolution: 1

ALERTS AND DATA CONNECTIVITY

• Modes : SMS / MQTT* / TCP-IP*
• Alarms : 2 settable alarms, sensor fault, open, over
• Healthy Alerts : Daily multiple SMS notification of device status
• Details : Battery status, sensor fault and alarm status.

NETWORK:

Modem :

• 2G GSM/GPRS (Optional 3G/LTE) Global Transmission;
• Dual SIM card.

Antenna :

• upto 3.0 dBi;
• Internal / External (in low network area).

POWER SUPPLY:

Normal Mode:

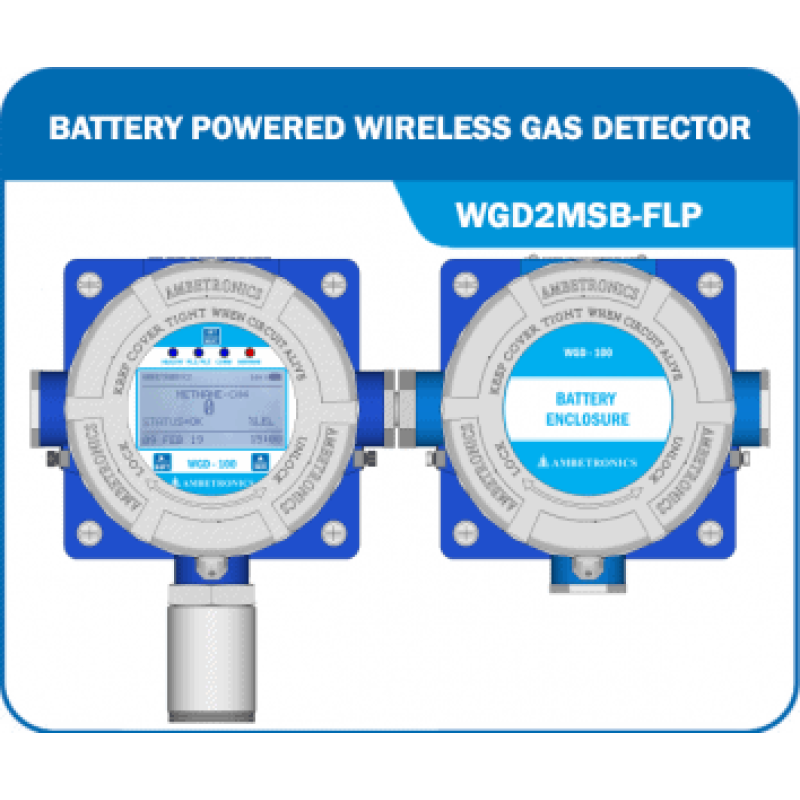

1.  Upto 10mW during detection (WGD2MSB)

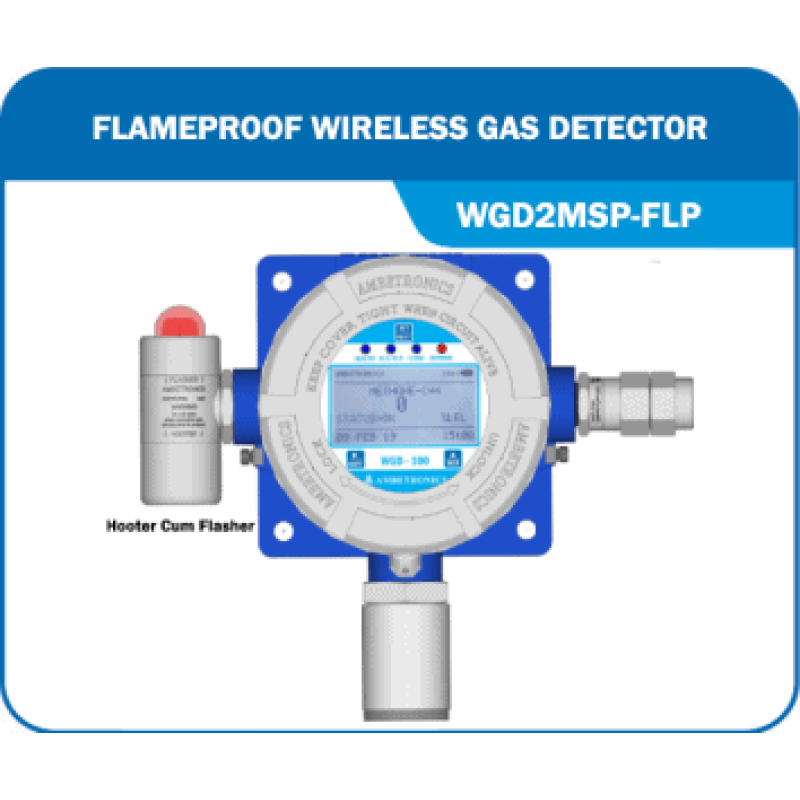

2.  Upto 288mW during detection (WGD2MSP)

During Data Transmission:

1.  Upto 300mW (WGD2MSB)

2. Upto 2W (WGD2MSP)

Power Supply:

1.   7.4V rechargeable battery;

2.  6 – 24V DC input;

3.  Solar System.

ENVIRONMENTAL SPECIFICATIONS:

• Temperature Range : -10°C to 50°C
• Relative Humidity : 10% – 90% RH, Non-Condensing.

HOUSING FOR WIRELESS DETECTORS:

• Protection class : IP-66 for GAS Gr. IIC CMRI Approved
• Cabinet Material : Cast Aluminium, LM-6
• Mounting : Wall Mounting / Stand Mounting / Pipe Mounting

Dimension :

• 247mm (W) x 213mm (H) x 120mm (D) – FLP
• 666mm (W) x 366mm (H) x 25mm (D) – Solar
• Weight : Approx. 4.9Kg – FLP.

Applications Of WGD-Series Wireless Gas Detectors:

 *  Application of the above System will differ according to the Customer requirement at site.

Typically, these wireless gas detectors find their use in the following applications / industries with ever widening scope:

• Refineries & Petrochemical plant including offshore drilling and plant shutdowns,
• Waste Water Treatment plants,
• Sewage Plants,
• Bullet yards or Tank farms,
• Leak in Gas Pipelines,
• Fire & Security Panels,
• Emergency response to off-site leak detection,
• Process or Emission Gas Analysis,
• Coal Mines,
• Heat Treatment Plants,
• Access Control,
• Pulp & Paper Industry,
• Personal Monitoring.
