MODEL

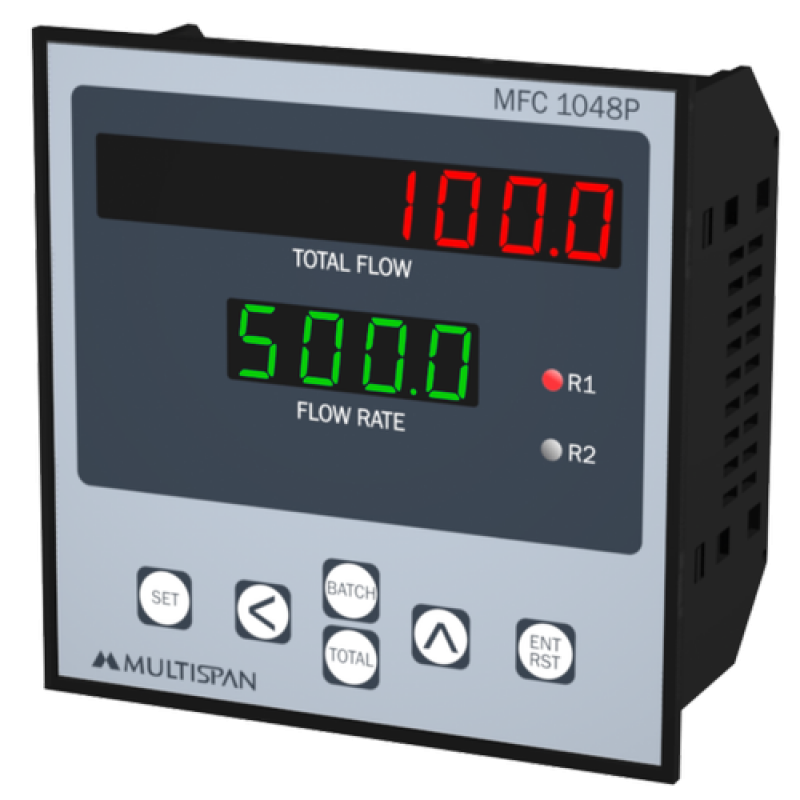

MFC-1048P

Dimension (HxWxD) mm

96 x 96 x 52

Panel Cutout (HxW) (mm)

92 x 92

Input

4 To 20mA DC / 0 To 10V DC / Pulse  (Factory set)

Range

0 To 99999999 For Total Flow

0 To 9999 For Flow Rate

Output

4-20mA DC/0-10V DC Retransmission

(Factory Set) (Optional)

24V DC Transmitter Supply@30mA (by default)

1Relay / 2Relay 5A, 230V AC (resistive load)

(1 Relay by default)

RS-485 MODBUS Communication (Optional)

Power Supply

100-270V AC (SMPS), 50/60 Hz  or  24V DC ( Factory set )
