MODEL

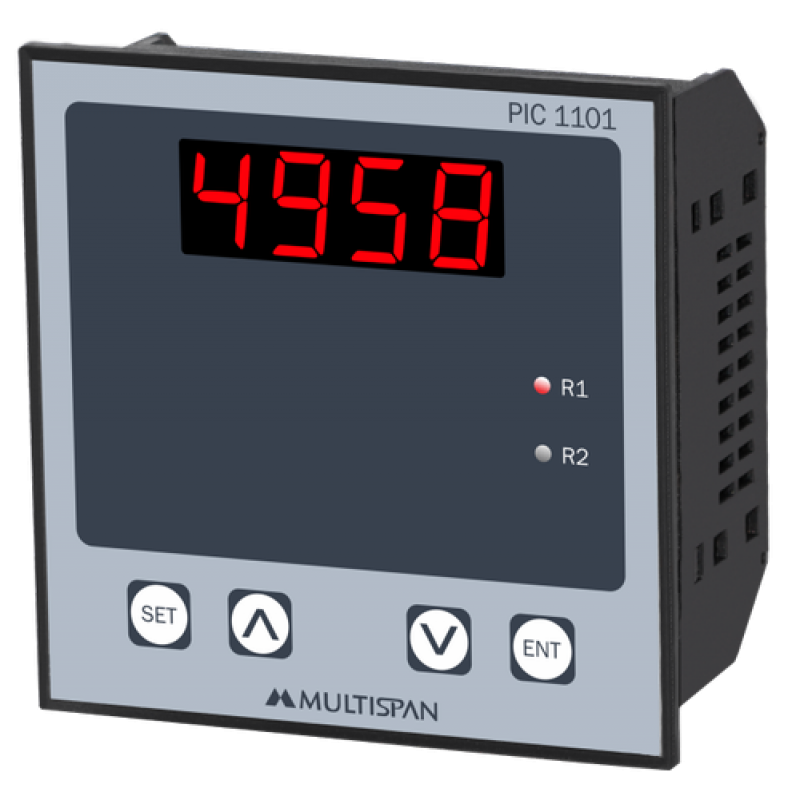

PIC-1101

PIC - 3102(H)

Dimension (HxWxD) mm

96 X 96 X 100

48 X 96 X 120

Panel Cutout (mm)

92 X 92

44 X 92

Display

Single display : 7 segment, 4 digit, 0.56", RED LED display.

Input Signal

0~10 V DC / 0-20mA / 4~20 mA (Factory Set)

Range

0 - 9999 (Configurable)

Control Output

1 - (Relay / SSR / Buzzer)

Relay Ratings

1 C/O, 5A, 230V AC

SSR / Buzzer

12V DC approximately

Retransmission

4 - 20 mA / 0 - 10V DC (Factory Set)

Excitation

24 V DC

Set point

1 or 2 - Set point (Factory Set)

Control Action

ON-OFF

Resolution

0.000 / 00.00 / 000.0 / 0000 (Configurable)

Accuracy

±1% of FSD

Power Supply

230 V AC, ±10 %, 50 Hz (Linear Power Supply)

Indication

"OuEr" - If Input Signal is more than Maximum Input "LOW" - If Input Signal is less than Minimum Input "0000" - If there is No Input Signal

Enclosure Material

ABS & Polycarbonate

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
